Industrial Heat Exchangers for Power Systems
Heat exchanger systems from Cosmotec keep critical power systems around the world operating effectively. With a variety of models to choose from, these products will protect your electrical system from dangerous heat, prevent shutdowns, and maximize uptime of your system.
With two types to choose from — Air/Air Heat Exchangers, and Air/Water Heat Exchangers — Cosmotec products are a wise choice across a wide array of industrial applications where heat control is a primary concern.
By exploiting the heat exchange between two separate air flows through an aluminum pack, air/air exchangers allow heat to be dissipated inside electrical panels with low maintenance and small dimensions. Using water as the cooling medium, water/air heat exchangers can provide high cooling capacities in relatively small sizes. They have a higher cooling capacity for the same size of an air conditioner and high savings can be achieved if several units are connected to an industrial chiller.
Choose an Air/Air Heat Exchanger When:
- the outside air has a lower temperature value than the inside air (approx. ΔT=10°C)
- a low cooling capacity is required
- little maintenance is required
- the ambient air is excessively oily or dusty
- outside air and humidity cannot enter the cabinet
Choose a Water/Air Heat Exchanger When:
- the outside air has a higher temperature value than the inside air
- the ambient air is extremely oily or dusty
- outside air and humidity must not enter the cabinet
- no heat is released into the environment
- cold/chilled water is available
Browse our available industrial heat exchanger systems below, and contact us today to learn more and request pricing. We look forward to supporting your next project.

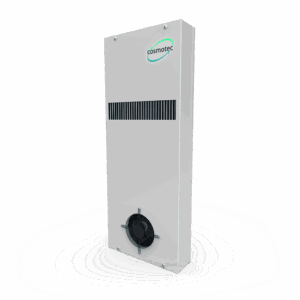

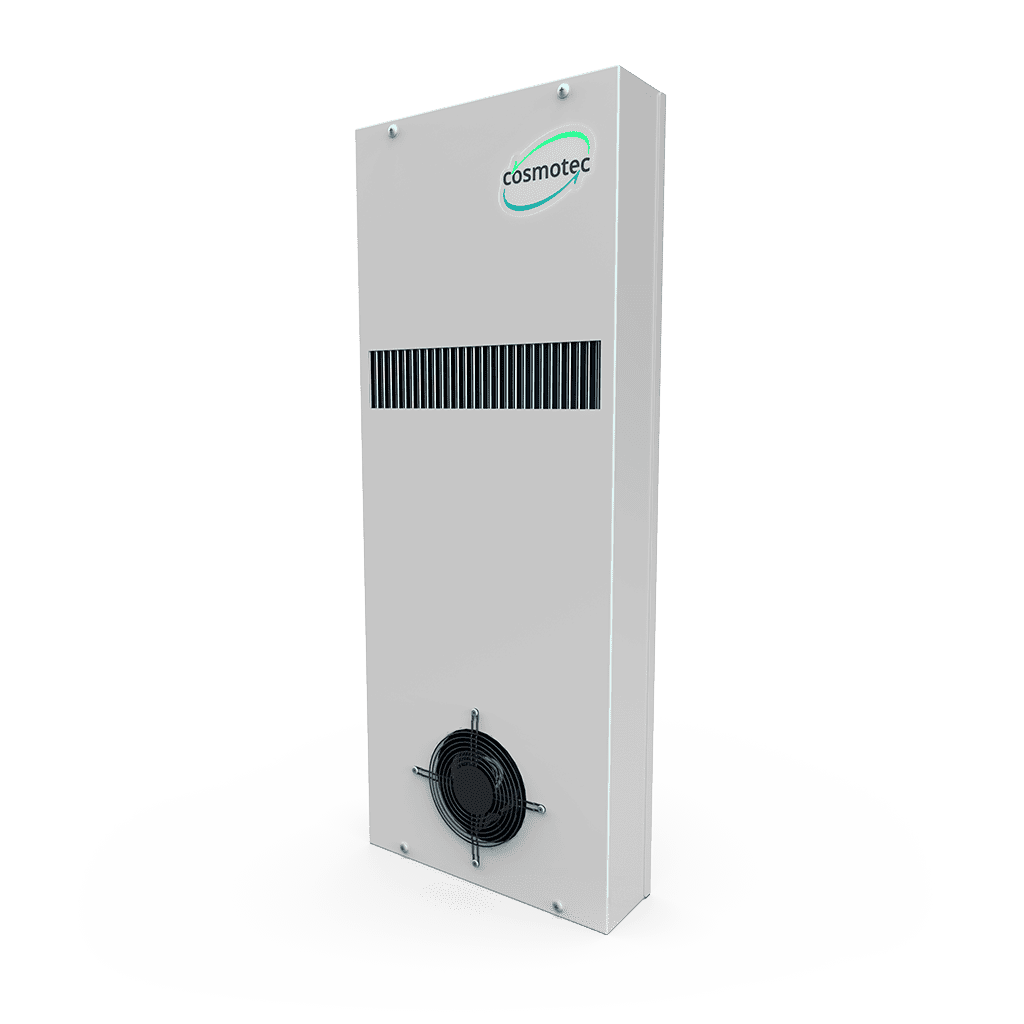

Wall Mounted Industrial Air/Air Heat Exchanger
Key Specs
- Compact dimensions
- Specific cooling capacity from 16 to 85 W/K
- Installation internal or external
- Power supply 230V and 115V
- Protection Degree IP54 or IP55 depending on model / Type12
Details
Thanks to their compact dimensions, XVA air/air heat exchangers can be installed in all electrical cabinets, even in applications where limited space is required in terms of width and depth. The industrial heat exchangers can be installed externally, but also internally, so as to eliminate any external clutter in the electrical cabinet.
XVA heat exchangers can be integrated with a mechanical thermostat to control the external fan. When the set point is reached, the fan is switched off, thus obtaining advantages in terms of efficiency (lower power consumption) and noise (no operation).

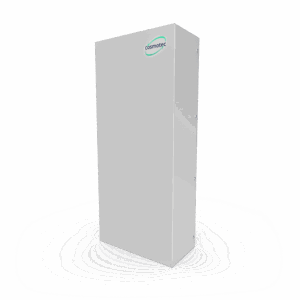

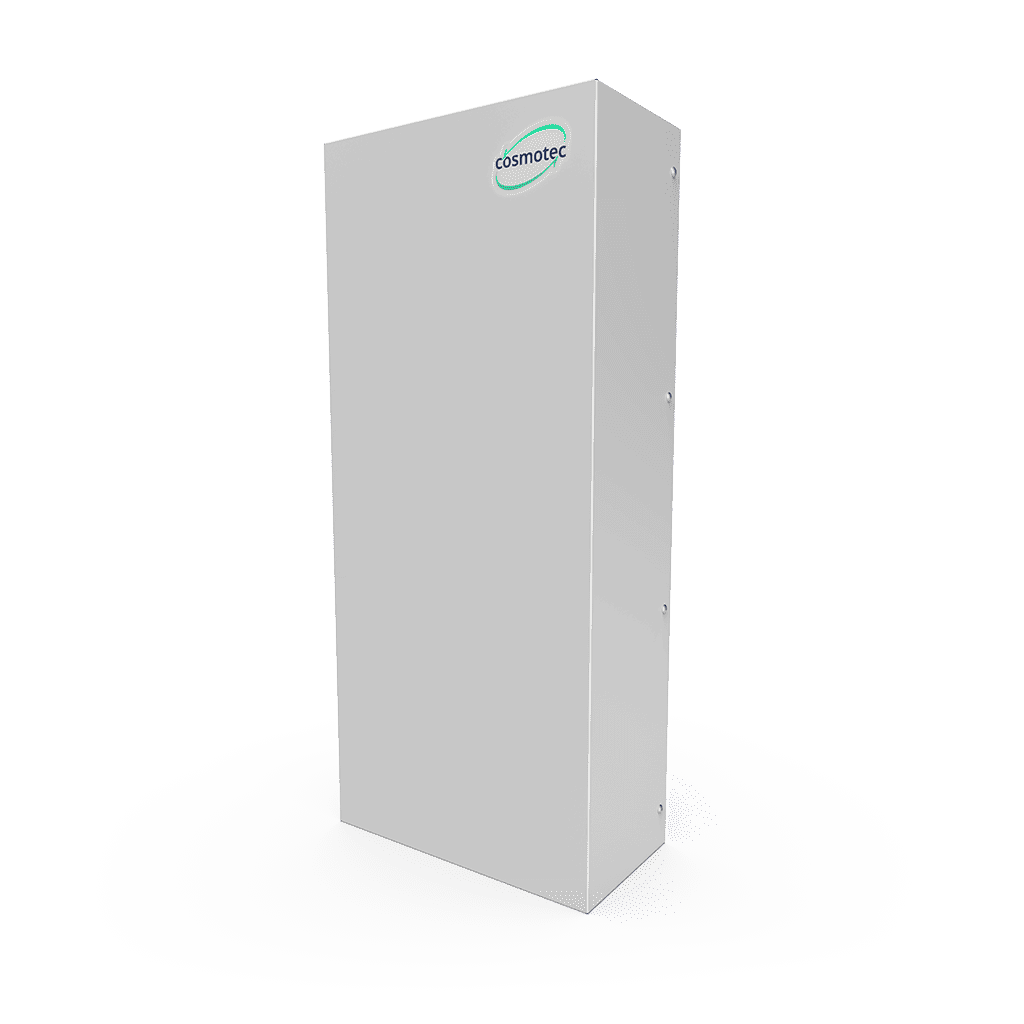

Industrial Water/Air Heat Exchanger for Wall and Roof Mounting
Key Specs
- Cooling capacity wide range from 870W to 25000W
- Installation wall-mounted or roof-mounted
- Power supply 230V, 115V and 400/460V
- Protection Degree IP54 or IP55 depending on model / Type 12
Details
The EXW range of water/air heat exchangers has a wide range of cooling capacities to meet all requirements. The range offers compact sized units for cooling electrical panesl up to 6700W and larger units for cooling panels with high thermal loads, up to 25000W. Two models for rooftop installation (2200W and 6700W) complete the offer.
EXW wall-mounted water/air heat exchangers can be equipped with a mechanical thermostat and solenoid valve to control the water flow required by the exchanger. The roof-top heat exchangers have as standard an electronic thermostat which, in addition to controlling the solenoid valve and the water flow, provides a general alarm, remote control and condensate level control to ensure safety and reliability.
