Industrial Air Conditioners for Electrical Panels
Cosmotec air conditioners support facilities around the world by keeping their critical electrical systems running smoothly. When heat is a concern, Cosmotec offers a range of solutions that will sure maximum uptime, efficiency and safety.
Because every installation is different, we offer a range of solutions shown below. Each of these systems is designed to protect against high temperatures, humidity, condensation, dust and particle infiltration, and component wear, derating and failure.
Browse our various industrial air conditioning systems below, and contact us today to learn more. We look forward to supporting your next project.
Protherm CVE / CVO
Compact Protherm CNE / CNO
SlimIn CDE
FlexIn CDI
Top ETE
Module EVE
Rack ERE
Smart EVO3H
Predator PRT

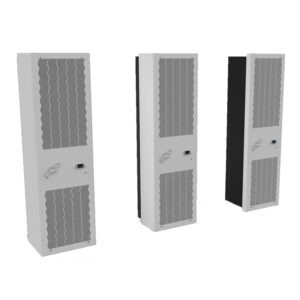

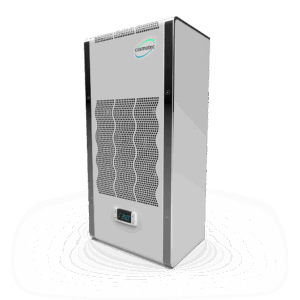

Industrial Air Conditioners for Electrical Enclosures in Indoor and Outdoor Applications
Click to Download Brochure (PDF)
Key Specs
- Cooling capacity from 360W to 5600W, the largest on the market, with 9 sizes available
- Power supply 115V, 230V and 400V/460V
- Operating range operating at sites with temperatures between:
+20/+55 °C (CVE)
-20/+55 °C (CVO, CE)
-40 °C (CVO, UL) - Protection Degree IP54 / Type12
Details
The increasing need to reduce consumption has forced the development of industrial air conditioning systems strongly oriented to maximum efficiency, while maintaining robustness, reliability and compactness, all characteristics that can be found in Protherm air conditioners for electrical panels.

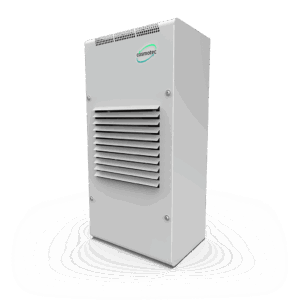

Protherm Outdoor CVOs, specifically designed to operate at low outside temperatures, offer a wide range of models to meet different customer requirements in the conditioning of shelters/cabinets for telecommunications, power distribution, etc.
SEM (Smart Energy Management) and SEM2 logics provide energy savings of up to 23%, combined with an increase in the cooling power of the air conditioner.
Thanks to the micro-channel coil of the Protherm air conditioners, which is thinner than traditional coils, there is a significant reduction in pressure drops and a greater air flow rate on the condenser, with a consequent reduction in power consumption.
Furthermore, thanks to the management of the evaporator fan by the XCB electronic control, it is possible to achieve a significant reduction in power consumption.
Compact Industrial Air Conditioners for Electrical Panels in Indoor and Outdoor Applications
Download Brochure R134A Gas (PDF)
Download Brochure R513A Gas (PDF)
Key Specs
- Application: available in Indoor (CNE) and Outdoor (CNO) versions
- Dimensions: suitable for installation on 300mm (12″) electrical panels or 600mm high boxes
- Cooling capacity: power range up to 1000W
- Wide choice of power supplies: available in 115V, 230V, 400/460V, 208V on request
- Efficiency: despite their compact size, the air conditioners have high EER and allow high savings
- Extended operating range: operational up to an outside temperature of 55°C, and set point up to 20°C (depending on model)
- Protection Degree:
CNE IP54 / Type12
CNO IP55 / Type4
Details
Compact Protherm is the range of industrial air conditioners designed for installations where units with small overall dimensions in terms of width or height are required. The technical solutions available distinguish these compact air conditioners for electrical panels for flexibility, reliability and efficiency.
In industrial automation, production space is an increasingly valuable asset and there is a need to find solutions that combine high performance with optimised layouts, such as cabinets with a depth of 300mm/12″.
However, the optimisation of the space also generates a greater density of electronic control components, worsening the thermal conditions of the system, which must be protected even more carefully against overheating in order to guarantee continuity of service.
Compact Protherm, an evolution of our bestseller, offers a Thermal Management solution suitable for placement on the side of all electrical cabinets up to 300mm deep, thanks to a width of only 280mm. In addition, the range also features a low height of 565mm, allowing it to be installed in electrical boxes integrated into machine tools.

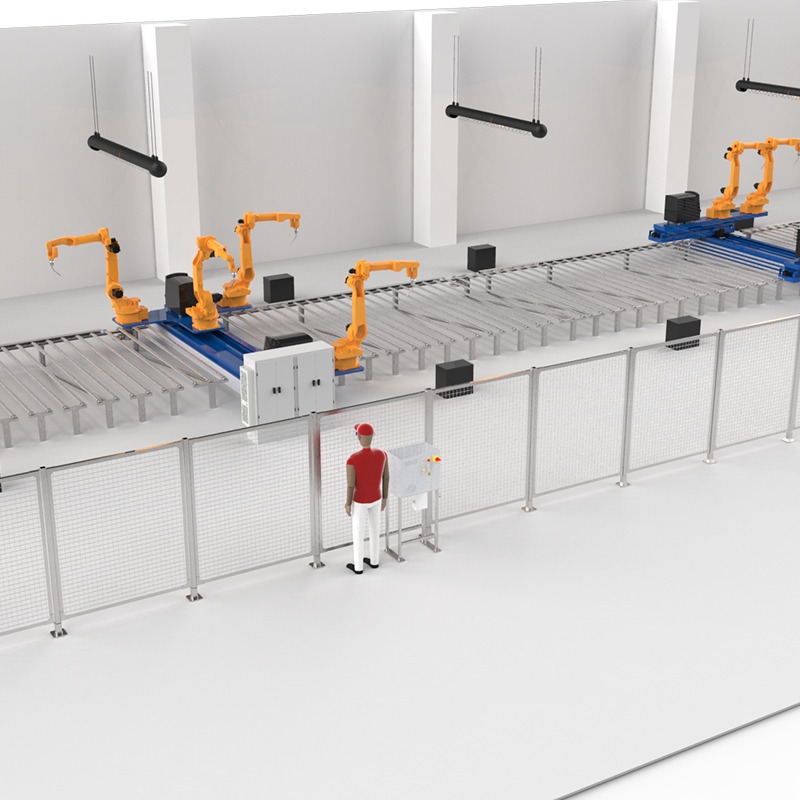

Slim Industrial Air Conditioners For Every Space and Installation Requirement
Key Specs
- Cooling capacity from 550W to 4000W
- Power supply 115V, 230V and 400V/460V
- Mounting external, semi-flush, or flush mounting
- Operating range +20°C … +55°C/+60°C
- Protection degree IP54/Type12
Details

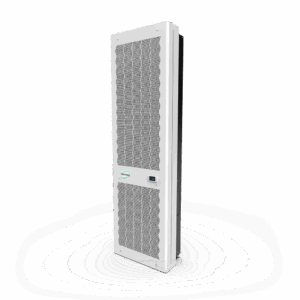

Slim In CDE is the range of extra-flat air conditioners designed for external, semi-flush, or flush mounting installations, ideal for installations requiring minimal space and reduced protrusions from the panel. The unit’s features allow for easy and fast installation.
The Slim In units feature high EER values and consequent economic savings thanks to the use of:
- Compressors and fans with high performance
- Microchannel condenser, which with its reduced thickness allows for better airflow
- Energy-saving functions (SEM and SEM2)

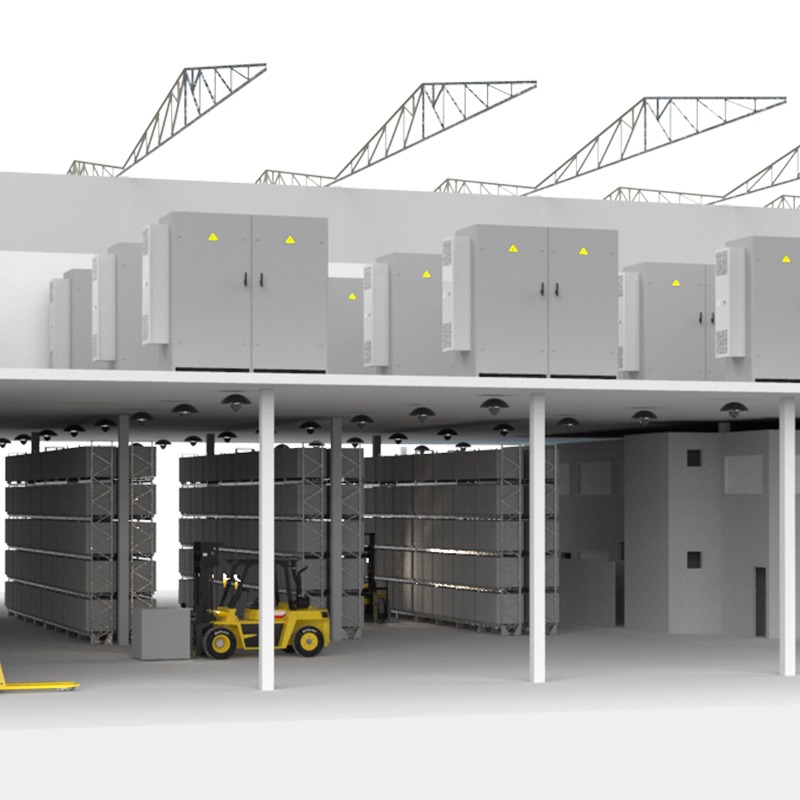

Industrial Air Conditioners with Inverter Technology, for Maximum Efficiency in Critical Applications
Key Specs
- Cooling capacity With three models, the Flex In range covers a wide range of refrigeration capacities, from 1000W to 4200W
- Different installations for every space requirement external, semi flush or flush mounting
- Wide range of voltages, with two codes covering the entire voltage range: single-phase 110 ÷ 240 V, 50 ÷ 60Hz, and three-phase 380…480, 50…60 Hz
- Protection Degree IP54 / Type12
Details

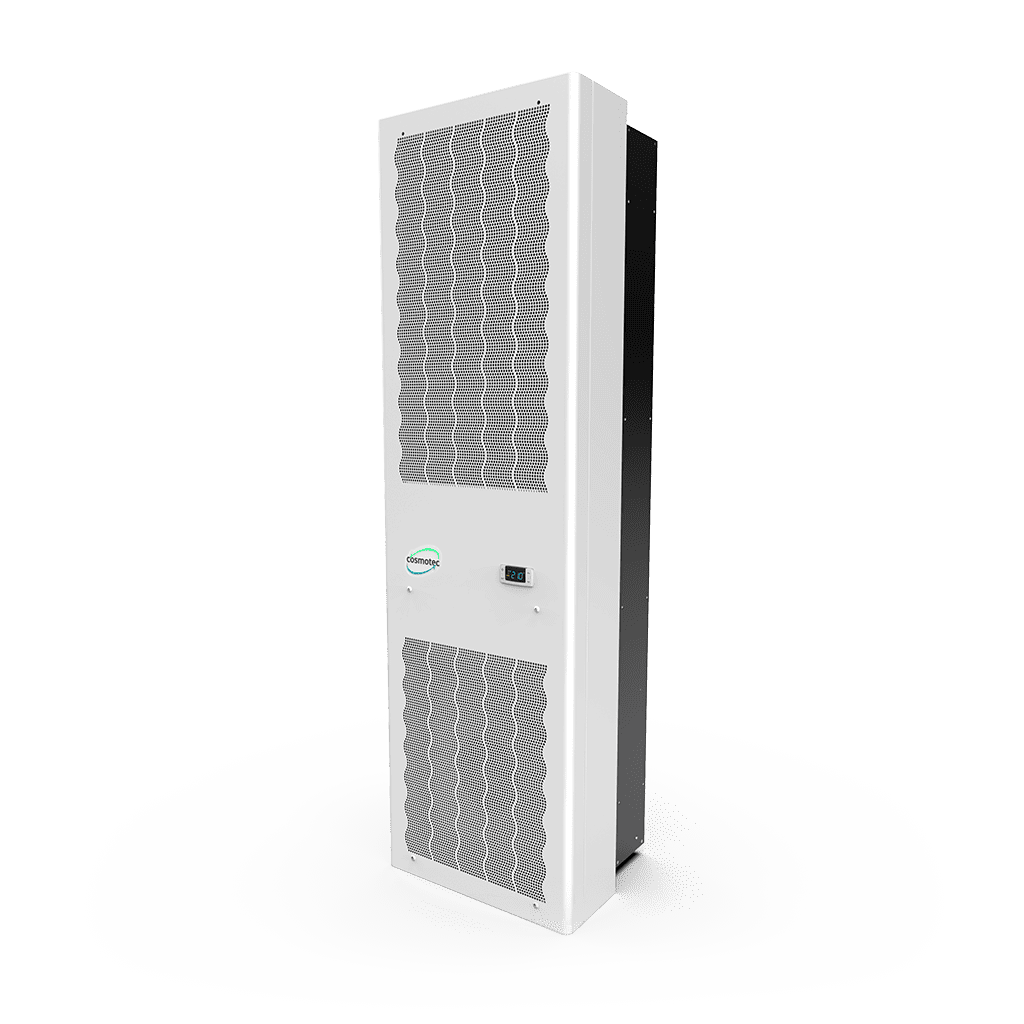

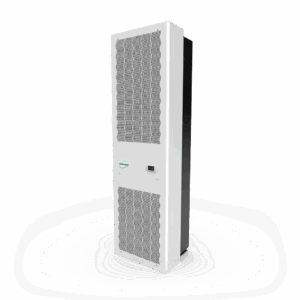

Modern industrial enclosures and servers require more accurate temperature control and low energy consumption, even with variable heat loads. In the past, these two requirements were incompatible or only partially met, but now both are available in the new FLEX IN CDI electrical panels air conditioner with inverter technology.
- Microchannel condenser: thinner than conventional coils reduces pressure drops and improves airflow over the condenser, reducing power consumption
- Electronic expansion valve: optimises evaporation, even in the presence of significant variations in the thermal load, increasing the performance and efficiency of the cooling circuit, with considerable energy and economic benefits
- EC fans: the air flow rate follows the cooling capacity to maximise the energy efficiency of the whole system in all operating conditions
- BLDC compressor: rotary compressor with BLDC (Brushless Direct Current) motor with advantages in terms of low noise, long life, energy saving
As a result of an Industry 4.0 approach , the Ethernet port is integrated into the air conditioner’s control board. This allows monitoring of all relevant parameters of the unit (temperatures, operating modes, alarms) via http, Snmp, Modbus TCP/IP protocols).

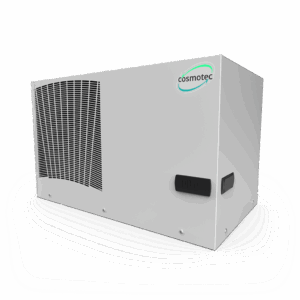

Industrial Air Conditioners for Mounting on the Roof of Electrical Cabinets
Key Specs
- Cooling capacity: the range offers a wide range from 300W to 5200W
- Power supply: 230V and 400/460V
- Electronic thermostat (available from ETE06)
- Condensate dissipator (available from ETE14)
- Protection Degree: IP54
Details
Industrial roof-mounted air conditioners allow the cooling of electrical cabinets even in situations where space is at a premium, such as in cabinet batteries or when escape routes must be left clear for safety reasons.
The solutions on the models allow optimal condensate management. The return air path ensures that no condensation forms on the roof of the cabinet and, in addition, from model ETE14 (1400W), the units are equipped with a condensate sink, without absorption of electrical power, for the reduction or elimination of condensation. For the models ETE06/09 there is a level switch to control the condensate in the condensate tray of the air conditioner.
Thanks to the high distance between the intake and the supply of internal air, it is possible to avoid short circuits of cold air, without the need to install conveyors and guaranteeing reliable operation. In addition, starting from the ETE14 model, thanks to the management of the room air flow, it is possible to install air conditioners adjacent to each other, optimising installation layouts.

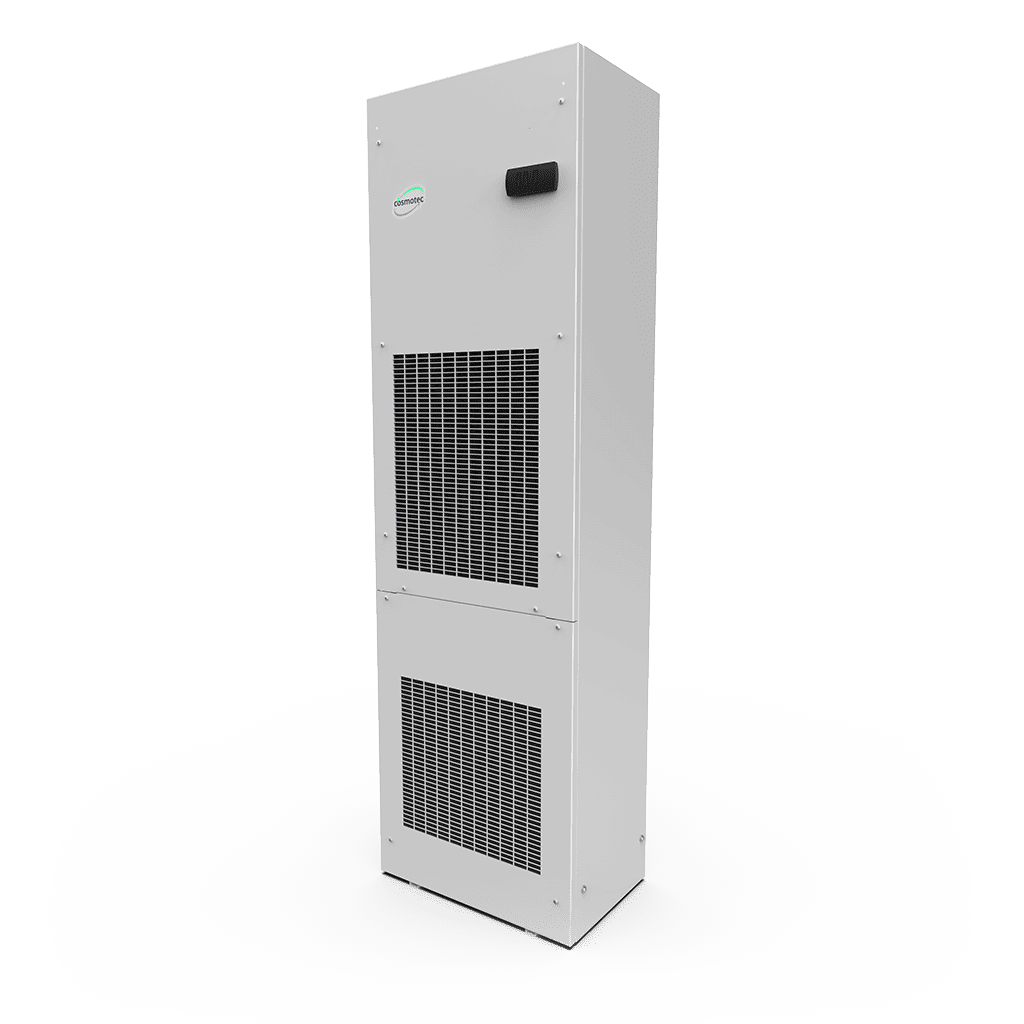

Industrial Air Conditioners for Modular Electrical Enclosures
Key Specs
- Cooling capacity wide range from 5800W to 10000W
- Power supply 400/460V
- Protection Degree IP54
Details
Module air conditioners are the best technical and economical solution for conditioning long rows of cabinets, where large cooling capacities are required.

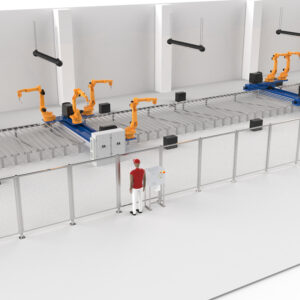

Machine tools, such as for die-casting or extrusion, may require large automation and control systems with high thermal loads, even above 4kW. In this case, the Module range with 6kW to 10kW enables the required cooling needs to be met optimally.
Rack Air Conditioners
Key Specs
- Cooling capacity 950W
- Power supply 230 V
- Protection Degree IP54
Details

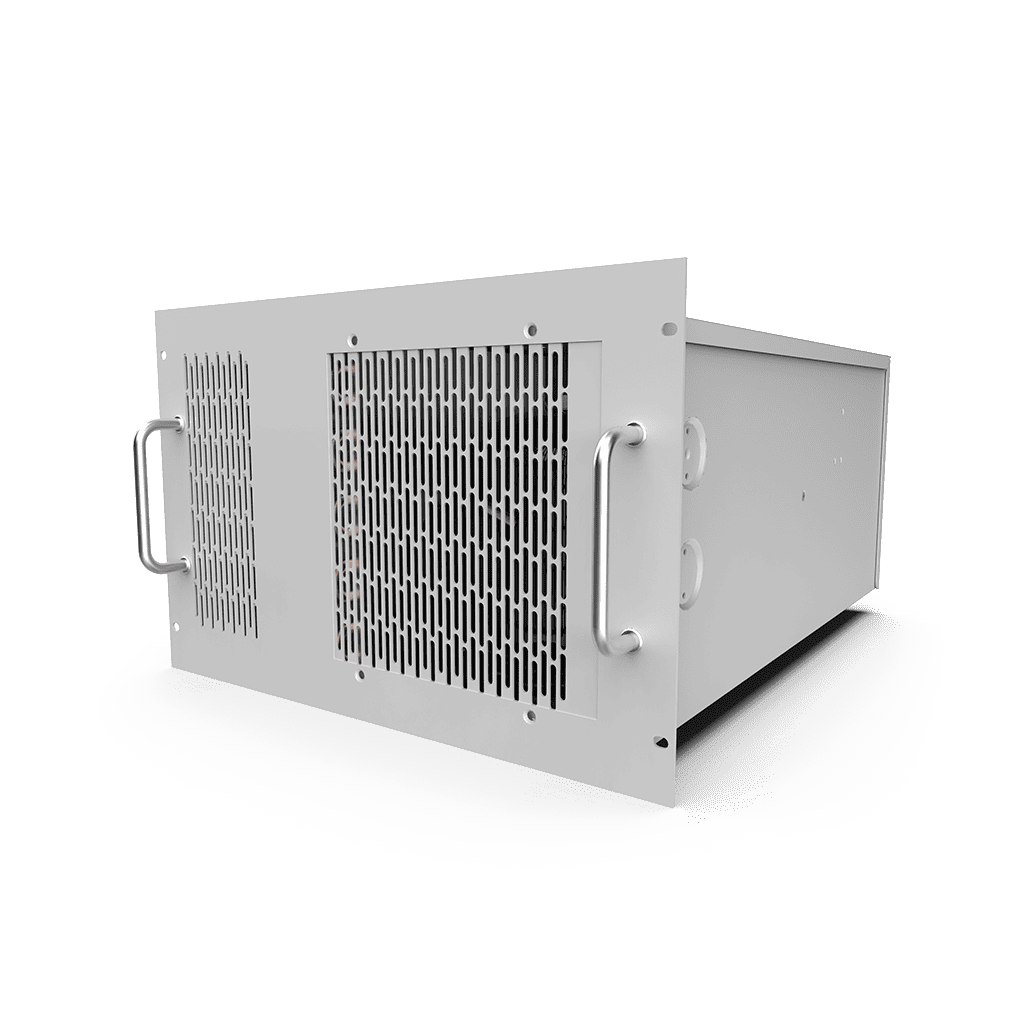

Small servers require low heat loads and small dimensions. The ERE air conditioner, with a footprint of only 7 rack units and an output of approximately 1000W, is suitable for cooling 19″ cabinets. In addition to the compact dimensions, the panel mounting and the choice of internal air flows ensure easy and flexible installation in the server rack.

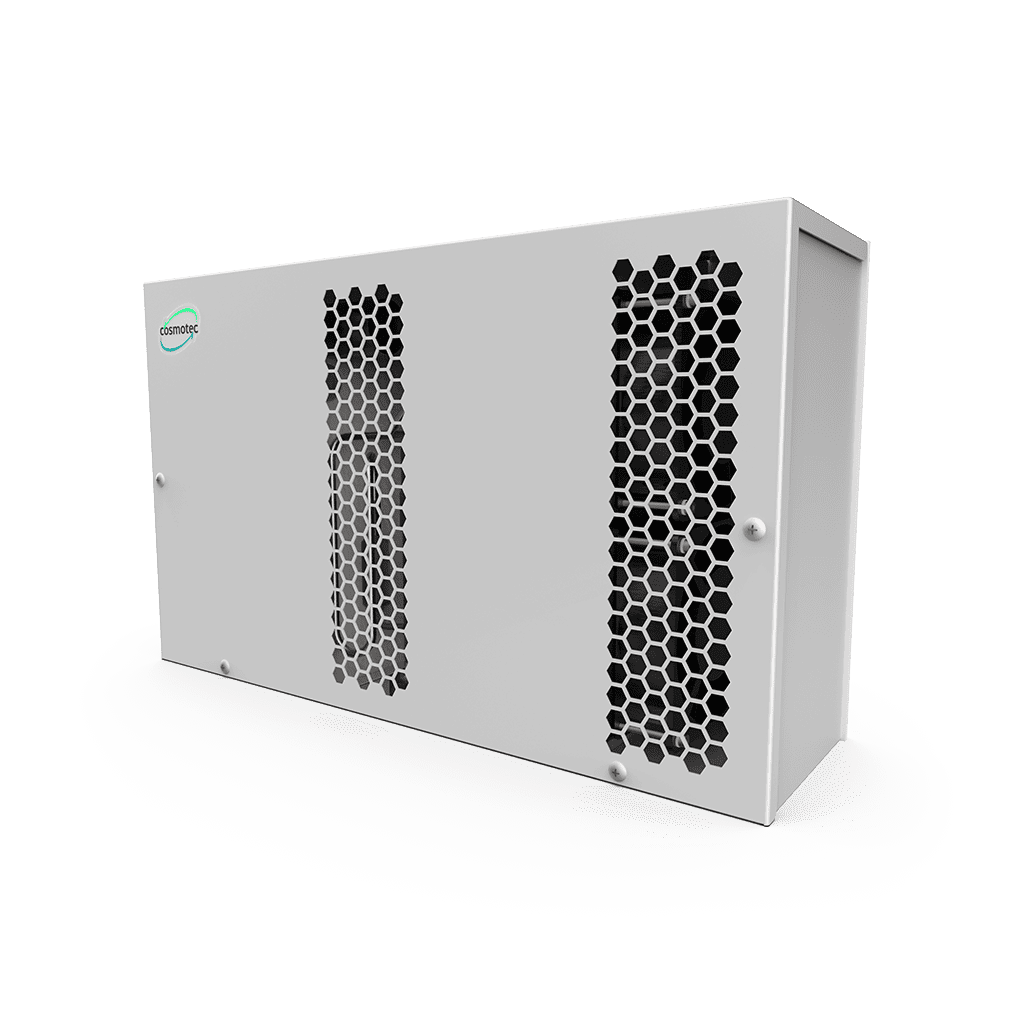

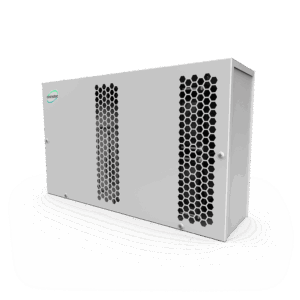

Industrial Air Conditioners for Horizontal Wall Mounting
Key Specs
- Cooling capacity 420W, controlled by an internal electromechanical thermostat
- Power supply units are powerd at 230V 50/60 Hz via a 3m cable
- Protection Degree IP54
Details
Some applications, such as small boxes integrated in machine tools, run horizontally rather than vertically. The Smart industrial air conditioner is the ideal solution because its horizontal layout, with compact height and depth dimensions, allows for simple and immediate installation on the machine or on control panels.

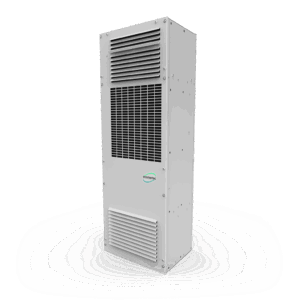

Precision Air Conditioners for Outdoor Industrial Applications
Key Specs
- Cooling capacity wide range of power: 1000W, 1400W, 2000W
- Wide choice of power supplies units available in 230Vac, 48Vdc, 230Vac+48Vdc
- Extended operating range operating at sites with temperatures between –20/+60 °C
- Installation flush-mounted, semi-flush-mounted or external
- Protection Degree IP54
Details
The Predator line offers a range of high-efficiency precision air conditioners for outdoor installations such as shelters/cabinets for telecommunications, power distribution, fibre optics, etc.
Predator units can be equipped with Free Cooling. Thanks to the direct use of external air, whenever the external air temperature is lower than the internal one, the cabinet is cooled “without cost”.
Direct Free Cooling is the best solution for energy saving and ensures a considerable cost reduction.
48 VDC Version
The 48Vdc version is particularly suitable for cabinets powered by renewable energy sources, such as solar, wind or battery backup.
The PRT20 at 48Vdc uses a brushless type compressor to achieve:
- continuous variation of cooling capacity
- increase in EER
- limitation of start-ups and consequent increase in compressor lifetime
